ComExpress Single Board

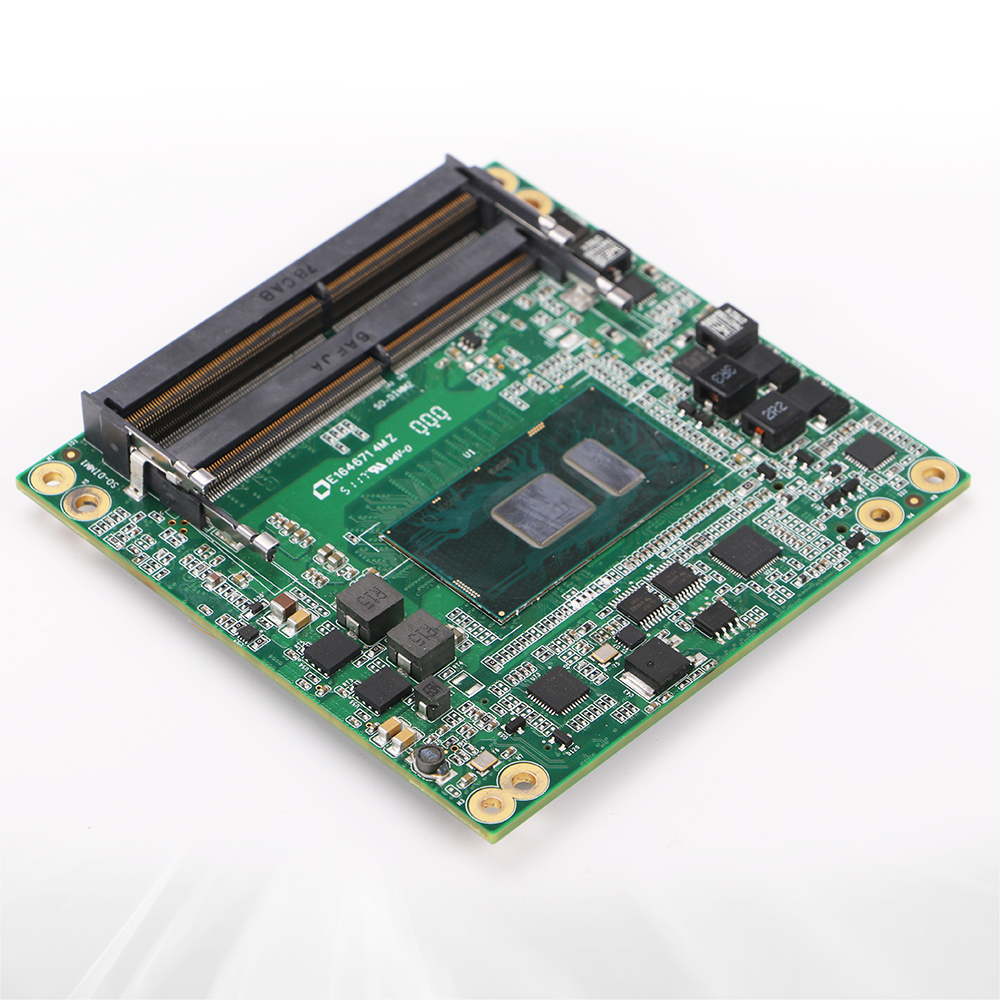

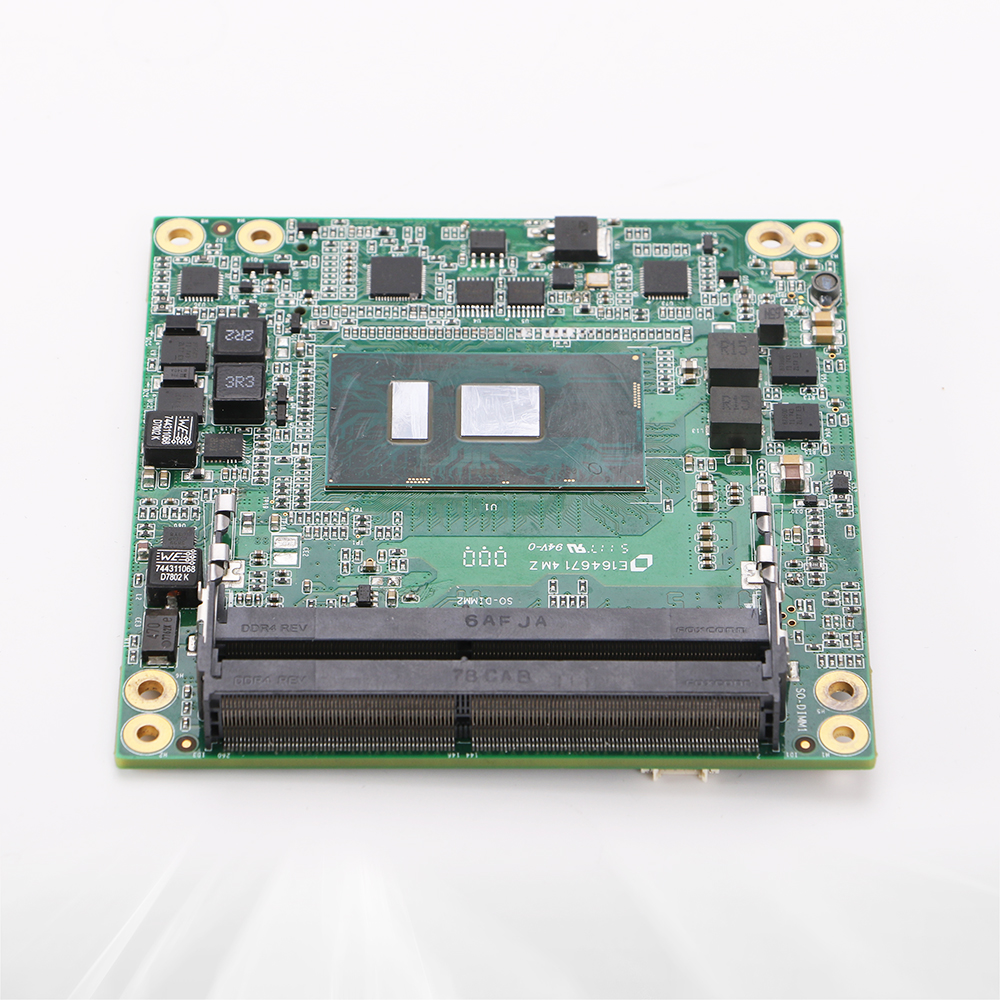

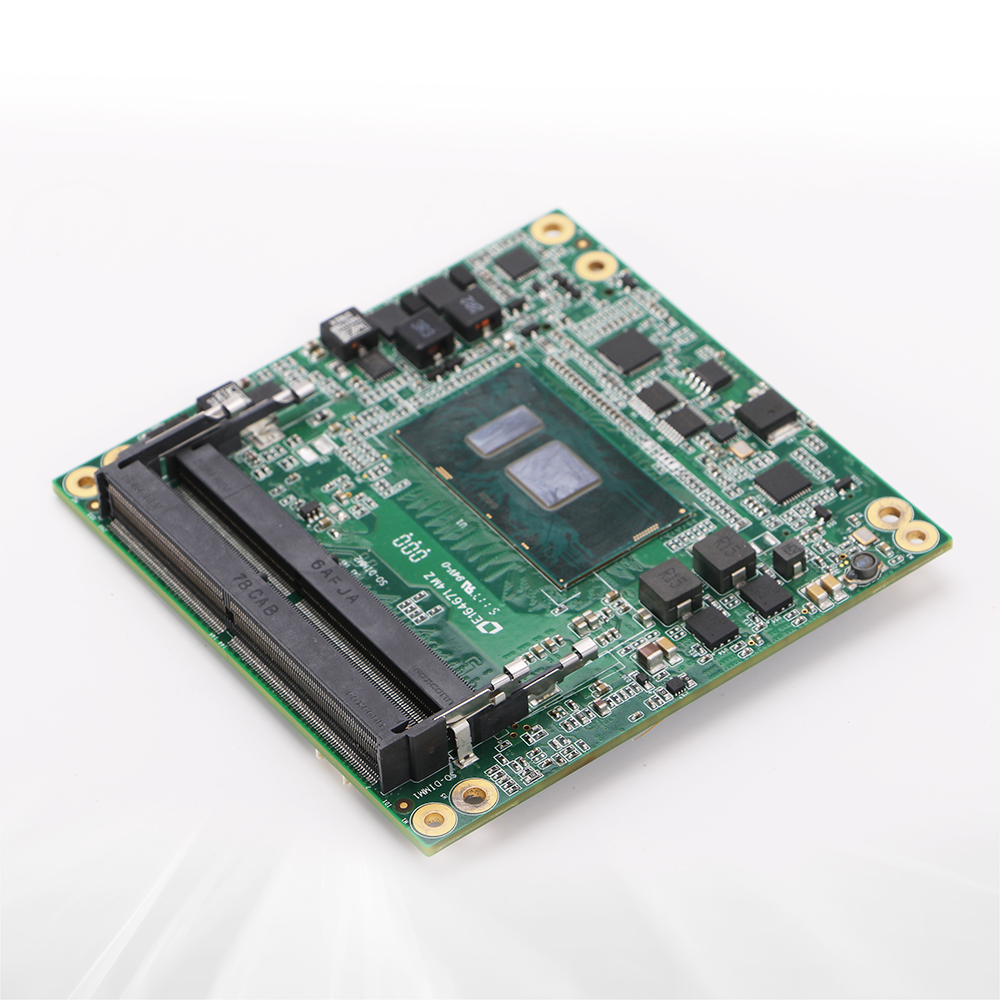

COM-1818CLNAR module adopts Type6 Connector Layout in COM Express2.0 bus standard, onboard Intel 6th Gen high-performance low-power Skylake-U architecture Core and Celeron processor. It has powerful computing capability and supports high-performance DDR4 memory. It can be widely used in communication, automation, medical treatment and other fields. Customers can design and develop their own carrier boards according to their requirements.
Item | Description | |
---|---|---|
Processor | Onboard Intel Celeron 3955U 2.0Ghz, Intel Core I3-6100U 2.3GHz, I5-6300U 2.4GHz, I7-6600U 2.6GHz | |
Chipset | Skylake-U | |
Memory | Supports dual-channel DDR4 1866/2133MHz SO-DIMM, UP to 32GB (non-ECC) | |
Display Port | Supports VGA, LVDS and DDI (DP/HDMI/DVI can be expanded through a carrier board) and others | |
Audio | Supports HAD | |
LAN | 1 x 10/100/1000 Mbps LAN port (Intel I219V), supporting LAN wakeup | |
I/O Port | 4 x USB2.0 port, 4 x USB 3.0 port, 2 x serial port, 4-channel input/4-channel output/IO port | |
Memory | 2 x SATA 3.0 port | |
Expansion Bus | 5 x PCIEx1; SPI, I2C, SMBUS, LPC and other buses | |
Working Temperature | 0°C~60°C (-40°C~85°C optional); 5%~95% (non-condensing state) | |
Storage Environment | -40°C~85°C, 5%~95% (non-condensing state) | |
Watchdog | Level 255, programmable seconds/minutes, timeout interruption or system reset | |
Power Supply | 8.5V-20V wide voltage power supply | |
Dimensions (W x D x H) | 95mm x 95mm | |
Supported Operating Systems | Windows 7、Windows 8.1、Windows10、Linux |
料号 | 型号 | 描述 |
---|---|---|
0030-021801 | COM-1818CLNAR-3955U | COM Express Compact Type 6 module/onboard Intel Celeron 3955U 2.0GHzCPU/supporting dual-channel DDR4 1866/2133MHz SODIMM, UP to 32GB/supporting VGA, dual-channel 24BIT LVDS, HDMI, DVI, DP and other displays, supporting up to 3-channel independent displays/1 x Gigabit LAN port / 4 x USB2.0 / 4 x USB3.0 / 2 x SATA3.0 / 1 x 8-channel GPIO/I2C expansion bus, LPC, SPI and SMbus expansion bus / 5*PCIEx1 |
0030-021811 | COM-1818CLNAR-I36100U | COM Express Compact Type 6 module/onboard Intel Core i3-6100U 2.3GHzCPU/supporting dual-channel DDR4 1866/2133MHz SODIMM UP to 32GB/supporting VGA dual-channel 24BIT LVDS HDMI DVI DP and other displays supporting up to 3-channel independent displays/1 x Gigabit LAN port / 4 x USB2.0 / 4 x USB3.0 / 2 x SATA3.0 / 1 x 8-channel GPIO/I2C expansion bus LPC SPI and SMbus expansion bus / 5*PCIEx1 |
0030-022061 | COM-1818CLNAR-I36100U | COM Express Compact Type 6 module/onboard Intel Core i3-6100U 2.3GHzCPU/supporting dual-channel DDR4 1866/2133MHz SODIMM UP to 32GB/customized display port/1 x Gigabit LAN port / 4 x USB2.0 / 4 x USB3.0 / 2 x SATA3.0 / 1 x 8-channel GPIO/I2C expansion bus LPC SPI and SMbus expansion bus / 5*PCIEx1 |
0030-021821 | COM-1818CLNAR-I56300U | COM Express Compact Type 6 module/onboard Intel Core i5-6300U 2.4GHzCPU/supporting dual-channel DDR4 1866/2133MHz SODIMM UP to 32GB/supporting VGA dual-channel 24BIT LVDS HDMI DVI DP and other displays supporting up to 3-channel independent displays/1 x Gigabit LAN port / 4 x USB2.0 / 4 x USB3.0 / 2 x SATA3.0 / 1 x 8-channel GPIO/I2C expansion bus LPC SPI and SMbus expansion bus / 5*PCIEx1 |
0030-022051 | COM-1818CLNAR-I56300U | COM Express Compact Type 6 module/onboard Intel Core i5-6300U 2.4GHzCPU/supporting dual-channel DDR4 1866/2133MHz SODIMM UP to 32GB/customized display port/1 x Gigabit LAN port / 4 x USB2.0 / 4 x USB3.0 / 2 x SATA3.0 / 1 x 8-channel GPIO/I2C expansion bus LPC SPI and SMbus expansion bus / 5*PCIEx1 |
0030-021781 | COM-1818CLNAR-I76600U | COM Express Compact Type 6 module/onboard Intel Core i7-6600U 2.6GHzCPU/supporting dual-channel DDR4 1866/2133MHz SODIMM UP to 32GB/supporting VGA dual-channel 24BIT LVDS HDMI DVI DP and other displays supporting up to 3-channel independent displays/1 x Gigabit LAN port / 4 x USB2.0 / 4 x USB3.0 / 2 x SATA3.0 / 1 x 8-channel GPIO/I2C expansion bus LPC SPI and SMbus expansion bus / 5*PCIEx1 |
0030-021791 | COM-1818CNAR-I76600U | COM Express Compact Type 6 module/onboard Intel Core i7-6600U 2.6GHzCPU/supporting dual-channel DDR4 1866/2133MHz SODIMM UP to 32GB/customized display port/1 x Gigabit LAN port / 4 x USB2.0 / 4 x USB3.0 / 2 x SATA3.0 / 1 x 8-channel GPIO/I2C expansion bus LPC SPI and SMbus expansion bus / 5*PCIEx1 |
1500-004391 | COM-1818 radiator module | Including heat-conducting plate CPU radiator etc. |
0050-001591 | EDB-COM08 | Part No. of backplane |
