MGP-800

Embedded GPU computing platform

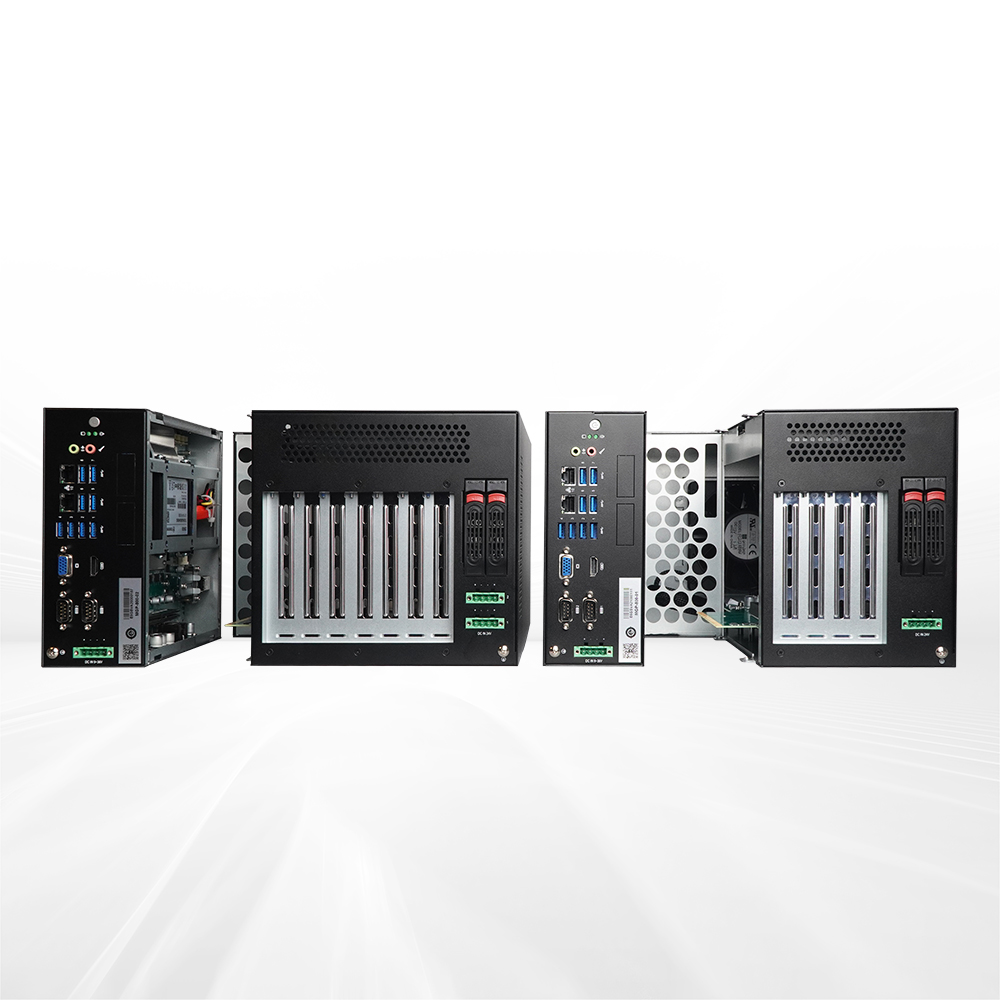

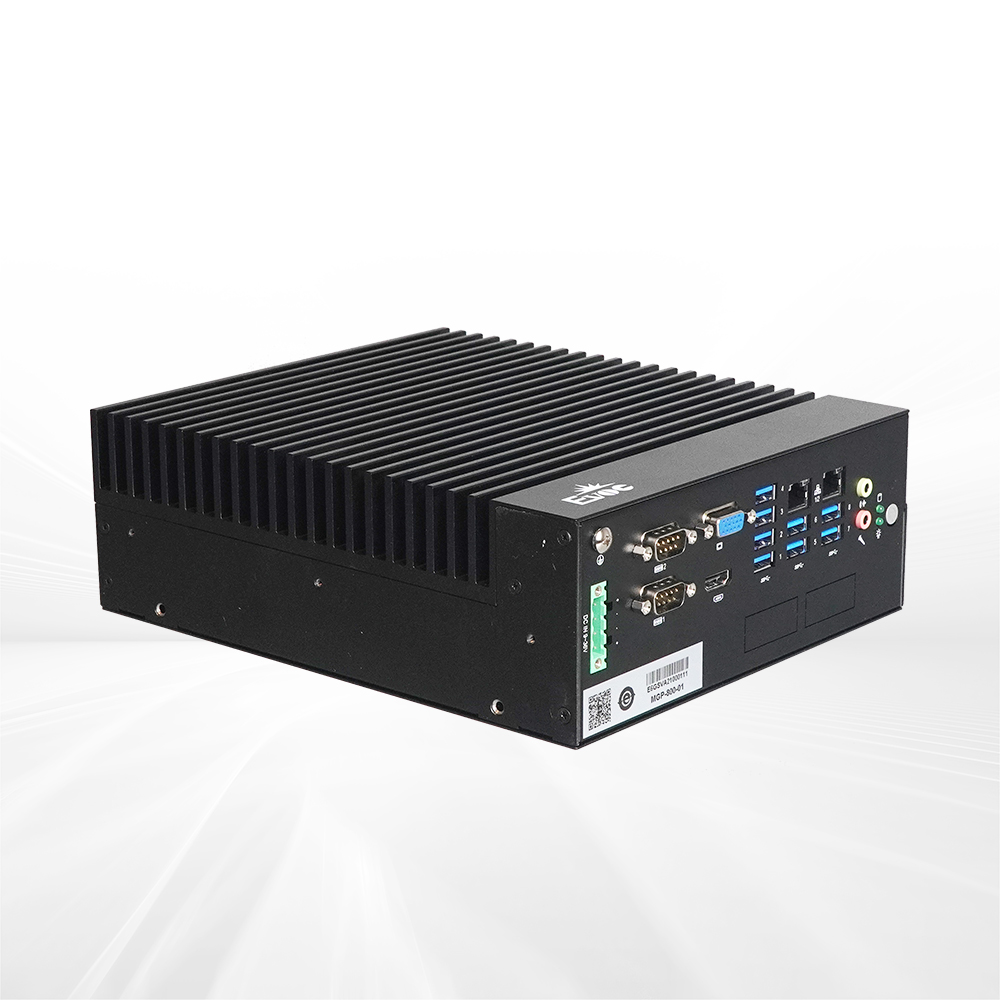

The MGP-800 is an embedded GPU computing platform. It consists of fanless complete PC + GPU expansion box; flexible expansion, supporting 2 HHL GPU cards, using Intel W480E chipsets, supporting the 10/11th generation Xeon Core processor; abundant IO ports can be expanded through high-speed connectors, and users can customize the port (such as optional expansion of multiple POE ports) to meet different application requirements. It is mainly used in machine vision, deep learning, AI and edge computing, vehicle-infrastructure cooperation, driving assistance and other application fields.

Product Features

Product Dimensions

Expandable to 2x HHL GPU card with strong AI computing capability

Multi-source data integration supporting 4G and WIFI communication

Professional power supply scheme

AI Extension

Meets the application needs of machine vision deep learning AI and edge computing vehicle-infrastructure cooperation and driving assistance

Product Specifications

Item Description
System Configuration Processor Supports the 10/11th-generation Xeon/Core series processors
Processors with power consumption not exceeding 80W
Chipset Intel® W480E
Memory 2 × 260-Pin DDR4 SO-DIMM, supporting up to 64G
I/O port LAN port 2 × RJ45
Display VGA, HDMI (1x DVI port is optional for the expansion of the built-in version)
USB 4 × USB3.2(GEN2),4×USB3.2(GEN1)
COM 2 × serial port, RS-232/422/485 (adjustable), 4 × built-in RS-232 (optional)
Audio 1 group of audio ports (1×line out, 1×mic in)
Expansion Bus Motherboard Integration 1x 8-channel GPIO port
1 x USB2.0 (1×5 Pin wafer socket, with the built-in softdog expandable through USB cable)
4 x SATA3.0 (6Gbps), supporting RAID 0/1/5/10
1 x TPM port, supporting TPM2.0
1 x MiniPCIe port (SATA signal), expandable 4G module or MSATA storage
1 x SIM card slot
1 x M.2 Key E (expanded WIFI module)
1 x 2×30Pin high-speed connector, custom expansion port
GPU expansion card MGP-800-01: 2 x PCIe×16 (PCIe×8 signals), 2 x PCIe×4
MGP-800-02: 1x PCIe × 16; 2x PCIe × 4
Length of expansion card ≤331mm
Supports mainstream GPU expansion cards on the market, up to three fan GPU cards
When a single GPU card is used for expansion, the thickness of the expansion card is ≤62.96mm
When dual GPU cards are used for expansion, it is recommended that the gap between two expansion cards be ≥5mm
Storage Hard Disk Supports up to 4 x 2.5-inch SATA 3.0 hard disk
1 x 2.5-inch hard disk bay, built in the fanless complete PC
Expansion box: supports 2 x 2.5-inch hard disk pull-out bay (supporting hot swap)
Supports 1x M-SATA slot (for either 4G or storage function. The 4G function and storage expansion cannot be used simultaneously)
Working Environment CPU power consumption 35W/65W/80W HDD & normal-temperature SSD Without GPU card 0℃~45℃
CPU power consumption 35W Wide temperature SSD Without GPU card -20℃~60℃
CPU power consumption 65W Wide temperature SSD Without GPU card -20℃~50℃
CPU power consumption 80W Wide temperature SSD Without GPU card -20℃~45℃
CPU power consumption 35W Wide temperature SSD 1×250W Power consumption GPU -20℃~60℃
CPU power consumption 65W Wide temperature SSD 1×250W Power consumption GPU -20℃~50℃
CPU power consumption 80W Wide temperature SSD 1×250W Power consumption GPU -20℃~40℃
CPU power consumption 35W Wide temperature SSD 1×350W Power consumption GPU -20℃~60℃
CPU power consumption 65W Wide temperature SSD 1×350W Power consumption GPU -20℃~40℃
CPU power consumption 80W Wide temperature SSD 1×350W Power consumption GPU -20℃~40℃
CPU power consumption 35W Wide temperature SSD 2×250W Power consumption GPU -20℃~60℃
CPU power consumption 65W Wide temperature SSD 2×250W Power consumption GPU -20℃~40℃
CPU power consumption 80W Wide temperature SSD 2×250W Power consumption GPU -20℃~40℃
Storage Environment -40℃~85℃;95% @ 40°C (without condensation)

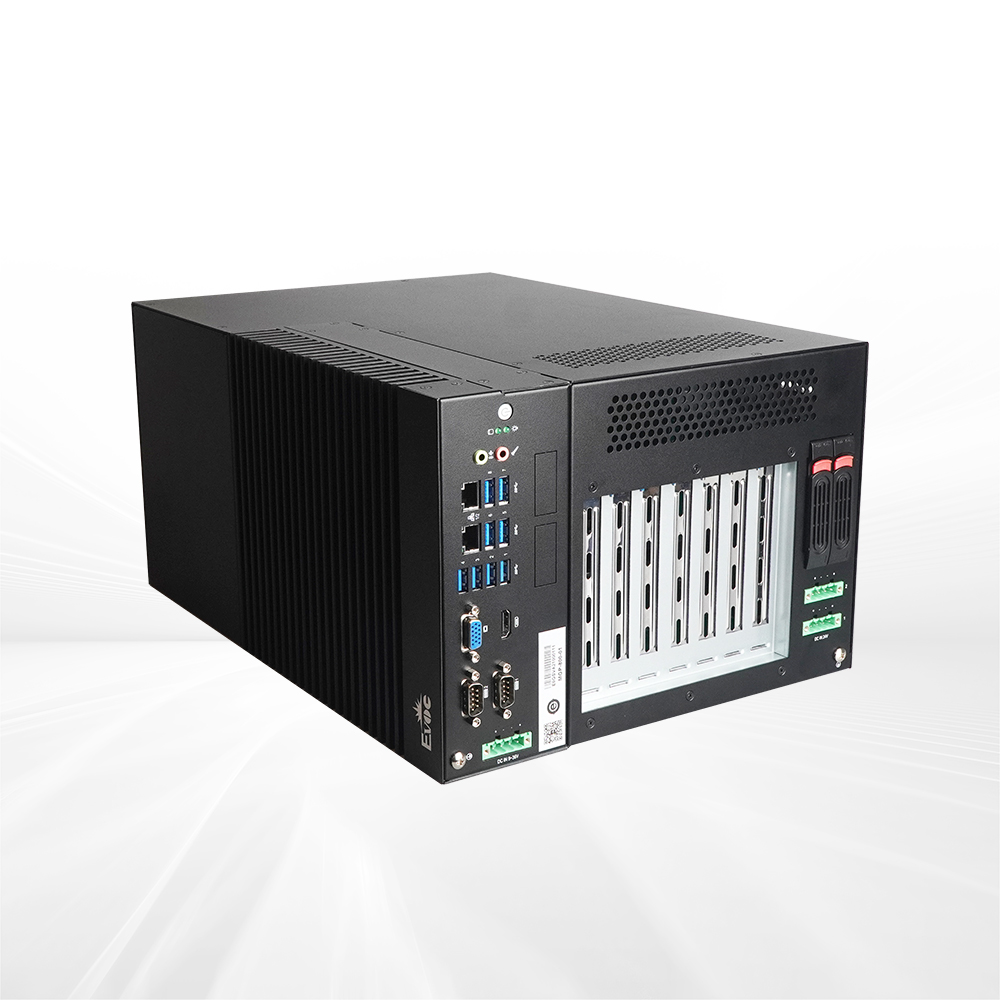

Product Dimensions Dimensions of dual GPU expanded complete PC: 290mm (width) × 200mm (height) × 395mm (depth)

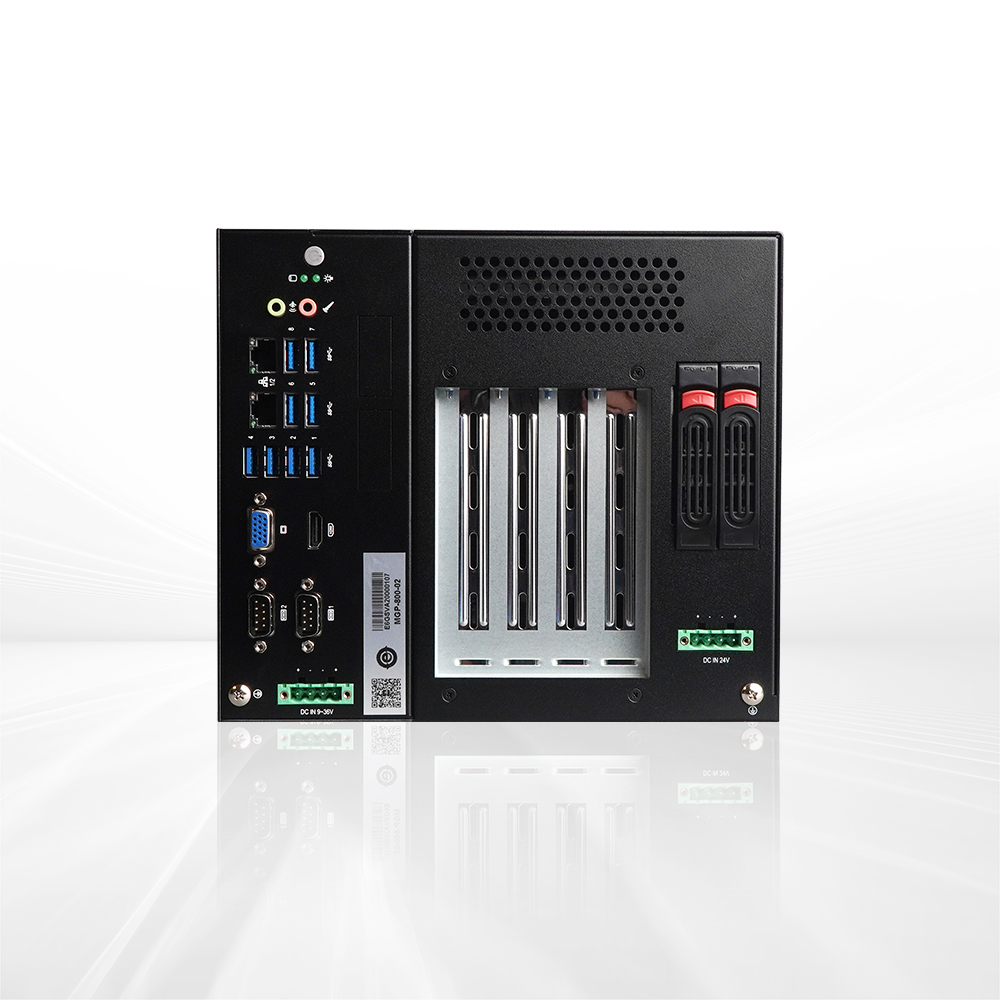

Dimensions of single GPU expanded complete PC: 229mm (width) × 200mm (height) × 395mm (depth)
Power supply External AC 220V power adapter
480W or 1000W power supply (optional)
Operating system LINUX systems with high kernel versions such as WIN10, Server 2019, CentOS, Linux and Ubuntu

Ordering Information

Part No. Model Deion
0020-066171 MGP-800-01 Barebone System Embedded GPU computing platform/ Intel®W480E chipset/ 2x Gigabit LAN port/ VGA+HDMI/4×USB3.2(GEN2), 4×USB3.2(GEN1) /2*COM, supporting 0020-066181 MGP-800-02 RS-232/422/485 (adjustable)/ 1 group of audio ports/ 2x PCIe×16 (PCIe×8 signals)/ 2x PCIe×4
0020-066181 MGP-800-02 Barebone System Embedded GPU computing platform/ Intel® W480E chipset / 2 x Gigabit LAN port / VGA+HDMI/4×USB3.2(GEN2) 4×USB3.2(GEN1)/ 2*COM supporting RS-232/422/485 (adjustable)/ 1 group of audio ports/ 1x PCIe×16/ 2x PCIe×4
0010-161251 MGP-800-01 Embedded GPU computing platform/ Intel®W480E chipset/ i9-11900 eight-core processor/ 2*16G memory/ 256G SSD/ 2x Gigabit LAN port/ VGA+HDMI/ 4×USB3.2(GEN2) 4×USB3.2(GEN1) / 2*DB9 supporting RS-232/422/485 (adjustable)/ 1 group of audio ports/ 2x PCIe×16 (PCIe×8 signals)/ 2x PCIe×4
0010-161261 MGP-800-02 Embedded GPU computing platform/ Intel®W480E chipset/ i7-11700 eight-core processor/ 2*16G memory/ 256G SSD/ 2x Gigabit LAN port/ VGA+HDMI/ 4×USB3.2(GEN2) 4×USB3.2(GEN1)/ 2*COM supporting RS-232/422/485 (adjustable)/ 1 group of audio ports/ 1x PCIe×16/ 2x PCIe×4
